Kumot

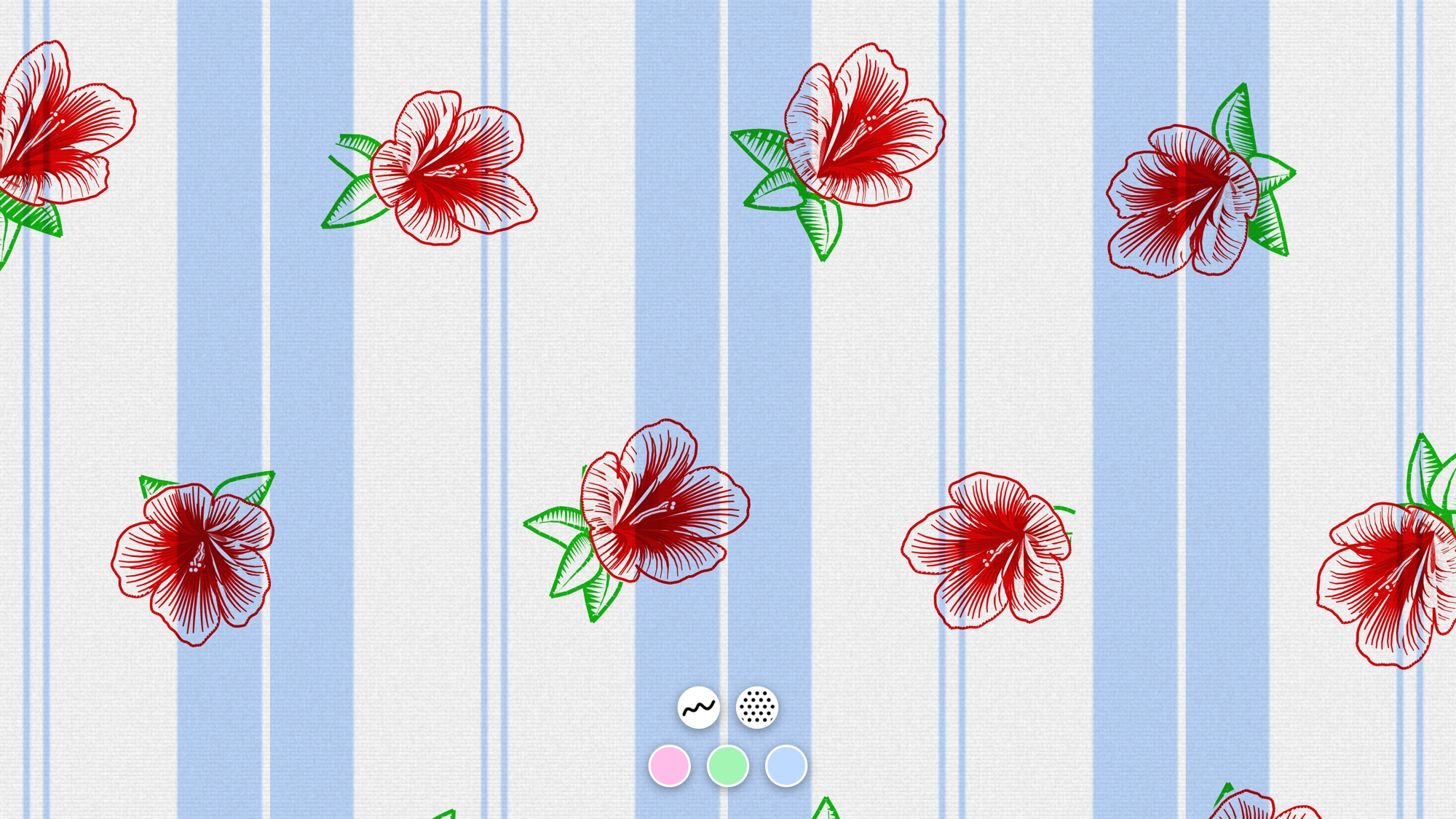

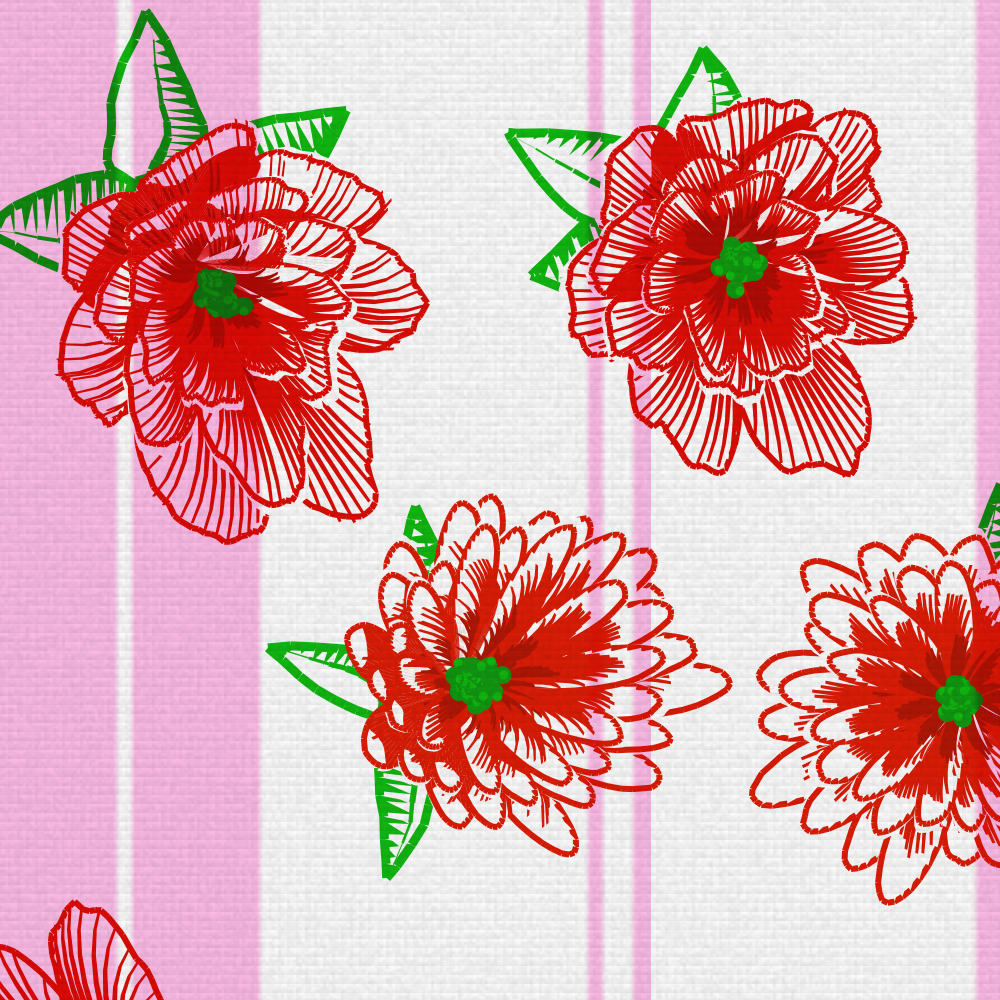

I made kumot legenerator, a webtoy that draws this Asian retro blanket pattern with random procedurally generated flowers.

Lore

Back in the Philippines, seemingly every home had this exact same kind of blanket since decades ago:

I’ve also had these back home growing up. It was comfy and pleasantly airy.

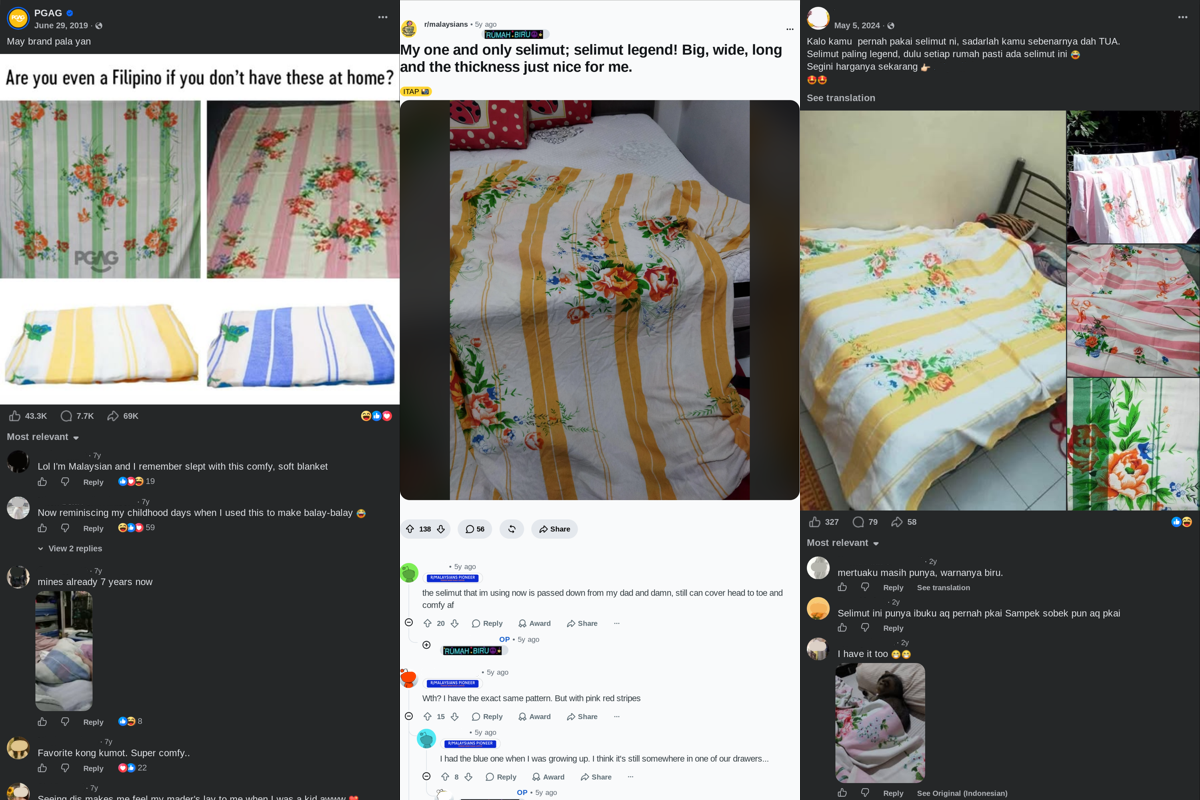

Apparently everyone else, not just in the Philippines, even in Indonesia and Malaysia too, had the same childhood blanket. That is, judging from several viral social media posts years ago.

I wonder how these got around so much back in the day? Anyway, I thought I’d turn it into a webpage.

As a web toy

The name ‘kumot legenerator’ comes from kumot, which literally means ‘blanket’ in Tagalog. Apparently, it’s ‘legendary’ because in Malaysia/Indonesia, it was called selimut legend (where selimut means blanket). And that’s why the second word is that way (It’s not French).

[kú•mot] noun
blanket. some dictionary

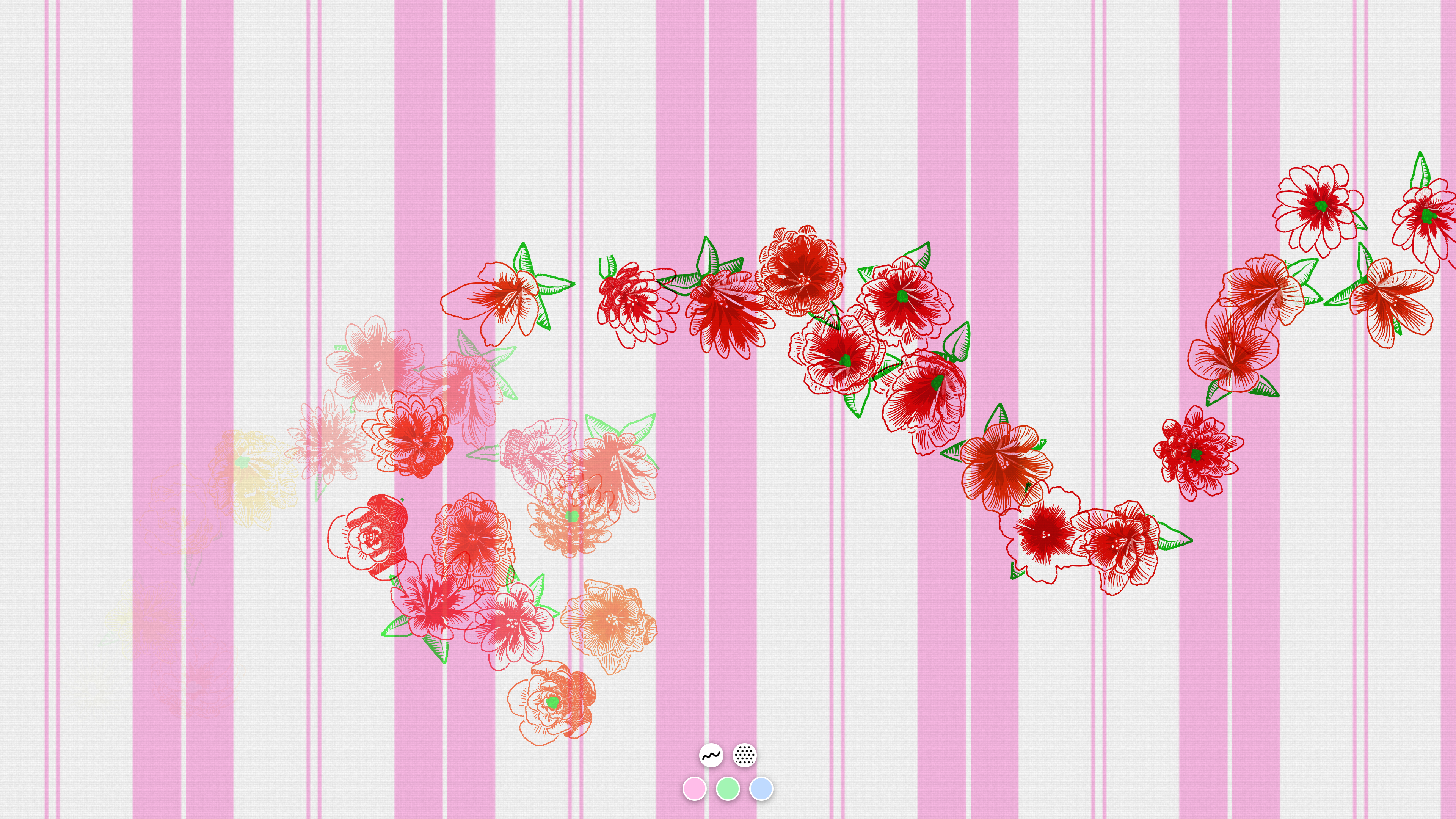

Features include choosing the colors, resizing the pattern, placing flowers, and having fun.

This post I go over how I created it, and there’s a gallery at the end.

Try it out first if you want!

Drawing the stripes

It starts with the base striped pattern. I’ve looked up many examples online, and while proportions vary, there is a consistent pattern. There’s a main repeating band of color on a white field; each colored band has one thin white stripe in the middle. Then between each band, around the center of the gap a pair of colored stripes.

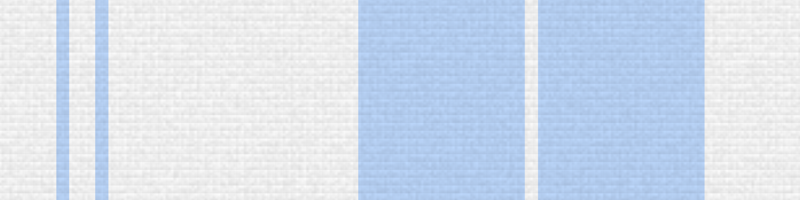

Basic texture is also applied using tiled translucent gradients and some pre-generated noise to make it feel like a tangible sheet. Something ma-lambot.

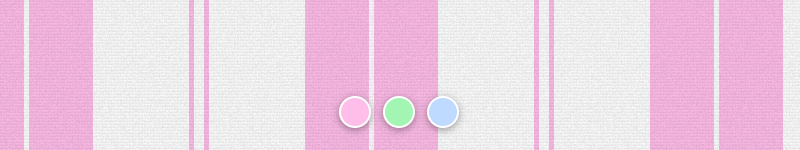

I think there were three/four ‘standard’ colors? I put a hue selector at the bottom of the app to select from the same typical colors you’d find irl.

On flowers

I spent the most time on the flowers. The flowers on the original blanket seemed to be block printed from hand-drawn templates. They were sufficiently intricate and was a high challenge to replicate (unless you’re abeto).

The trick was to work in polar coordinates. If you laid out angle and distance as x- and y-coordinates, it becomes more natural to work with floral shapes using regular math functions. A simple sinusoid in polar coordinates produces the basic lobes for the petals, see the following demos

The contour is further shaped by applying an exponent on the sine. The exponent essentially describes how full or thin the petals are, so we could go from daisy to hibiscus and everything in between.

Our polar sinusoid still looks unnatural and perfectly geometric. Let’s make some noise. A simple coherent fractal noise (e.g. Perlin, simplex) gives that natural imperfection.

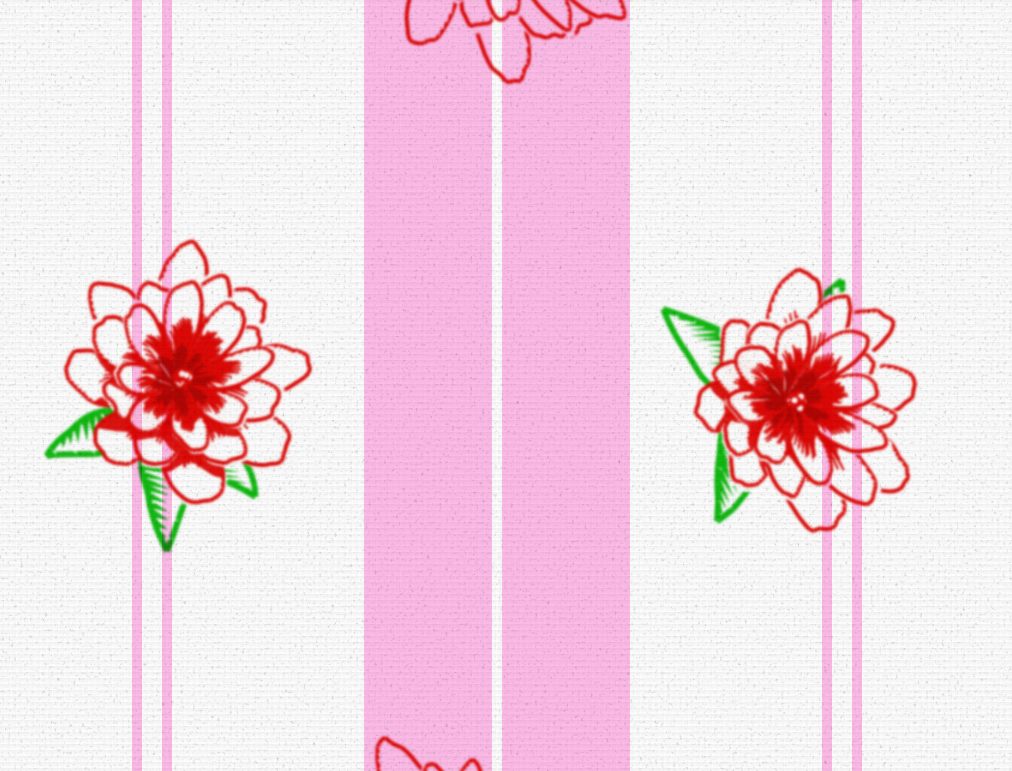

Some flowers have more than one layer of petals. This is easy, we just draw the same thing smaller with some angular offset. Draw order is important! Back to front.

The rest of the details are simple curves and shapes I added and built up during the project. Together they give a lot of depth.

The trick I used to fake 3D was to bias each point of the flower towards a certain facing direction proportional to its distance from the center.

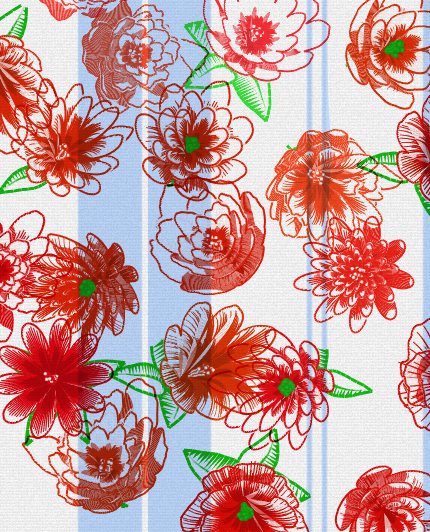

That’s basically the core recipe. Every possible parameter is randomised so you could get lots of variation using the same procedure.

As for the leaves, I didn’t spend too much time on them. I was pretty much done by the time the flowers were in a good state. Maybe one day. I’d have liked some branching vine/stems creeping around the flowers.

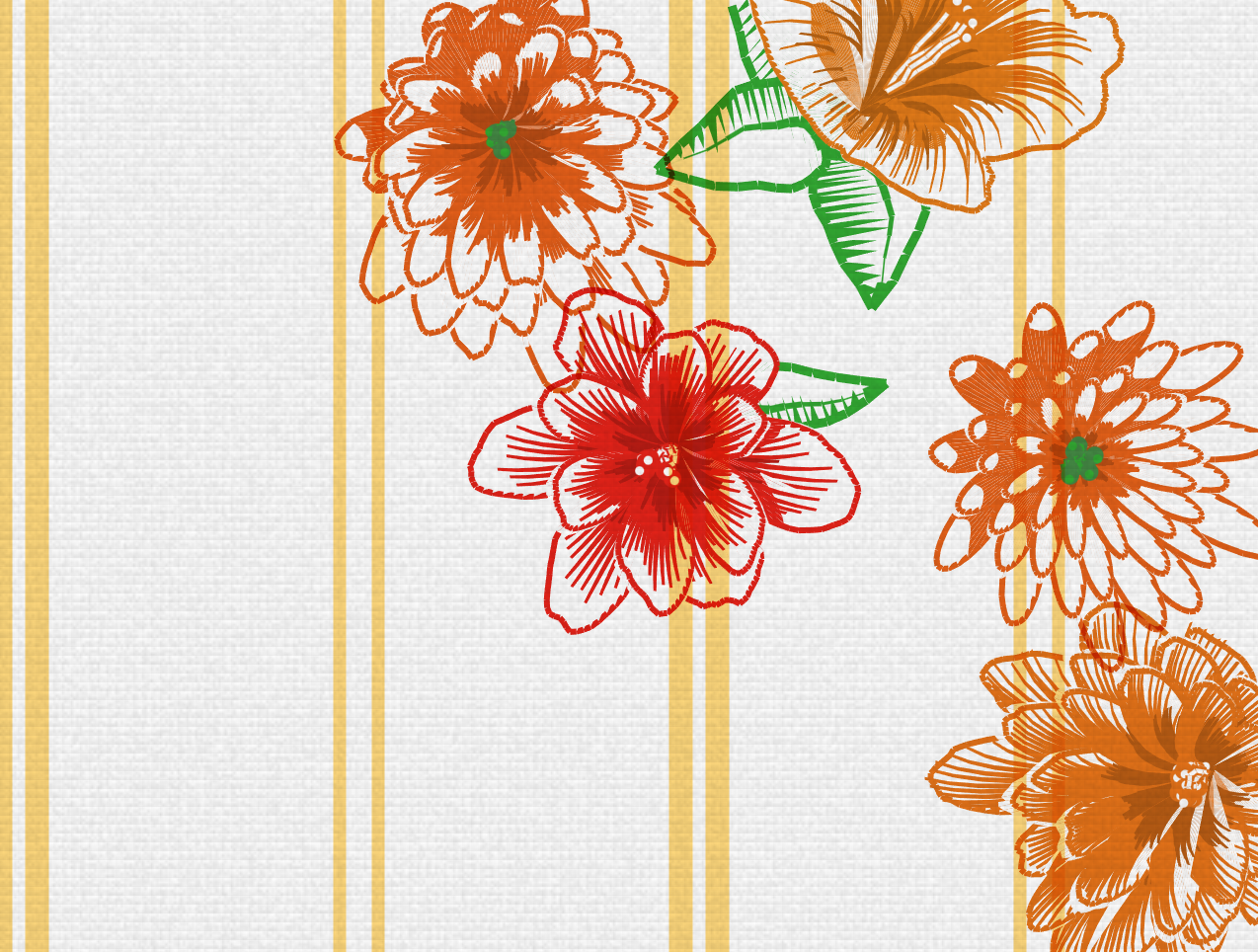

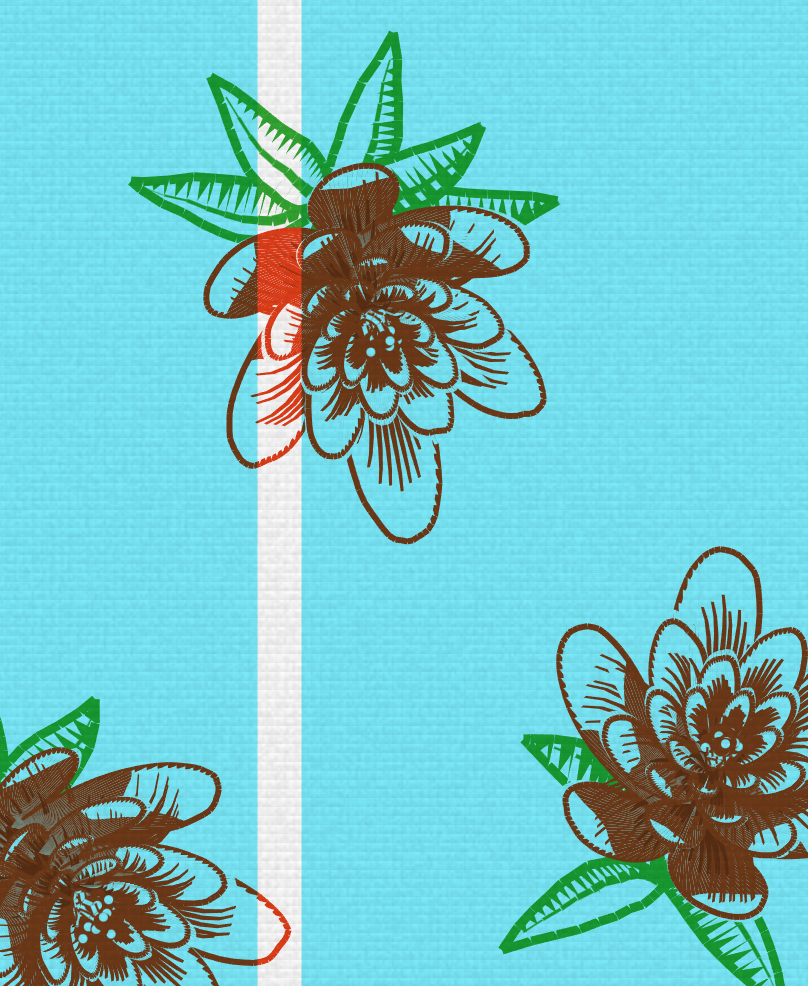

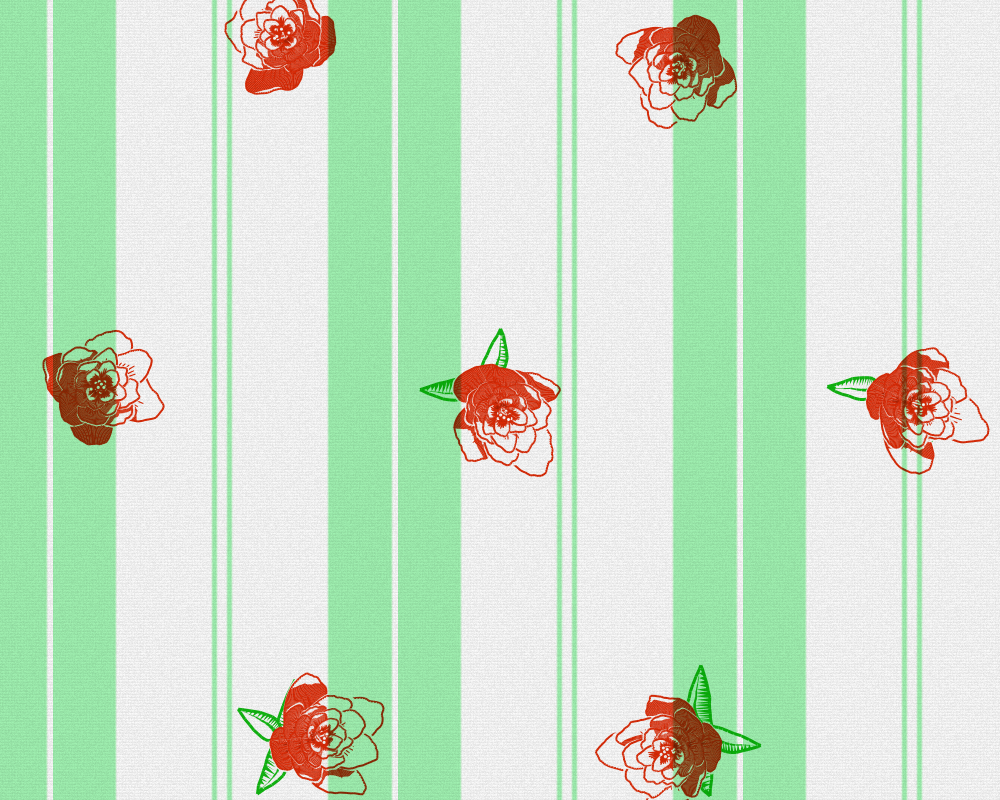

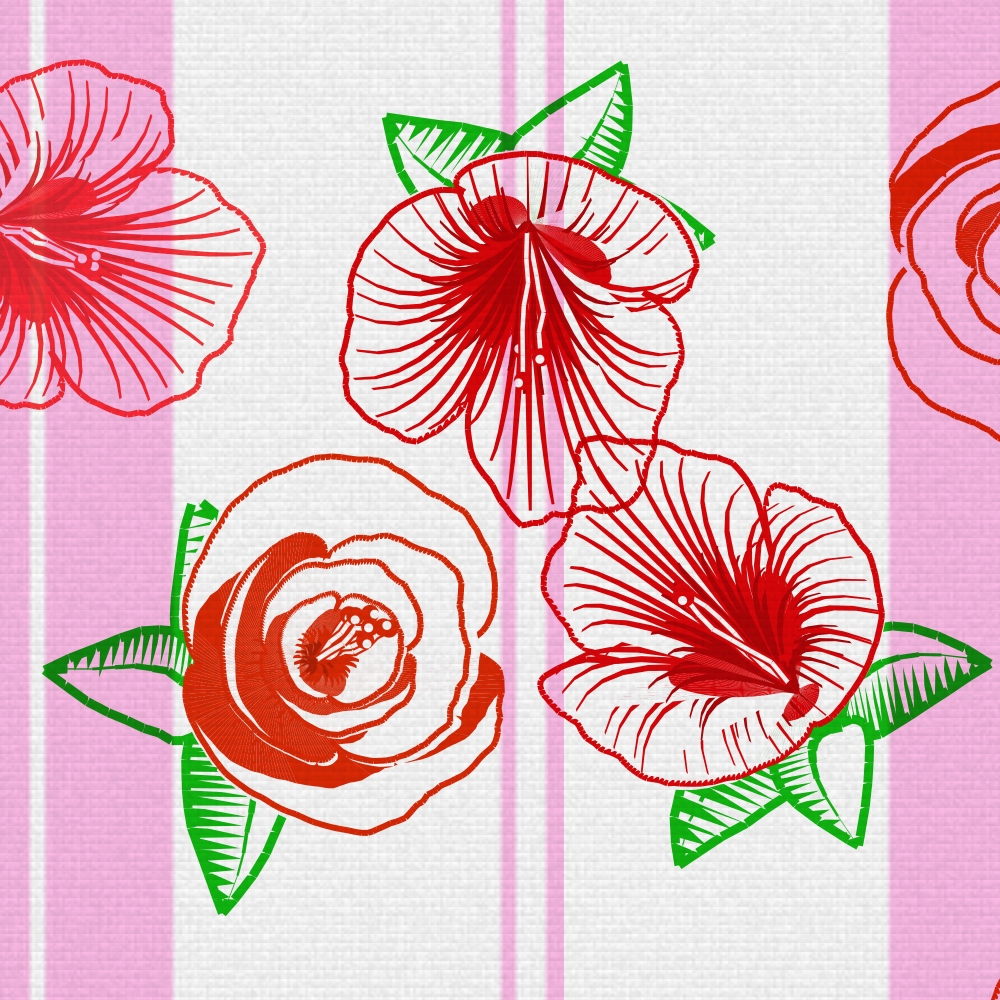

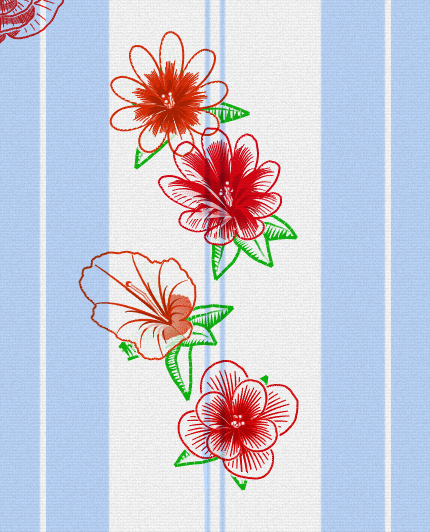

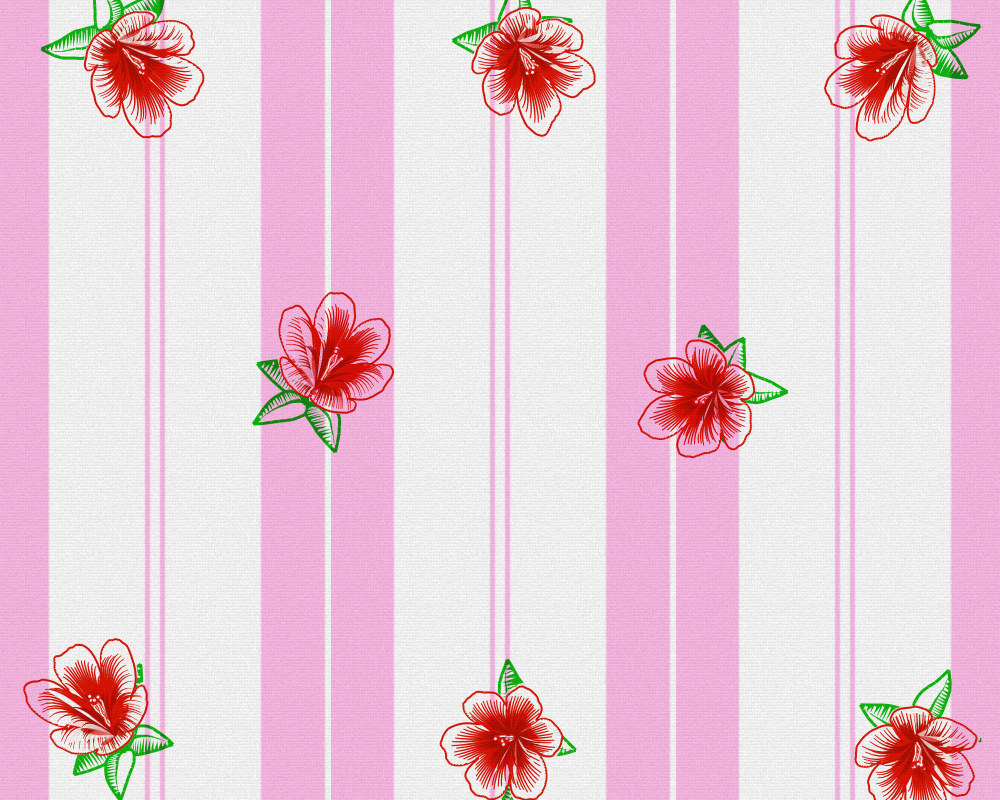

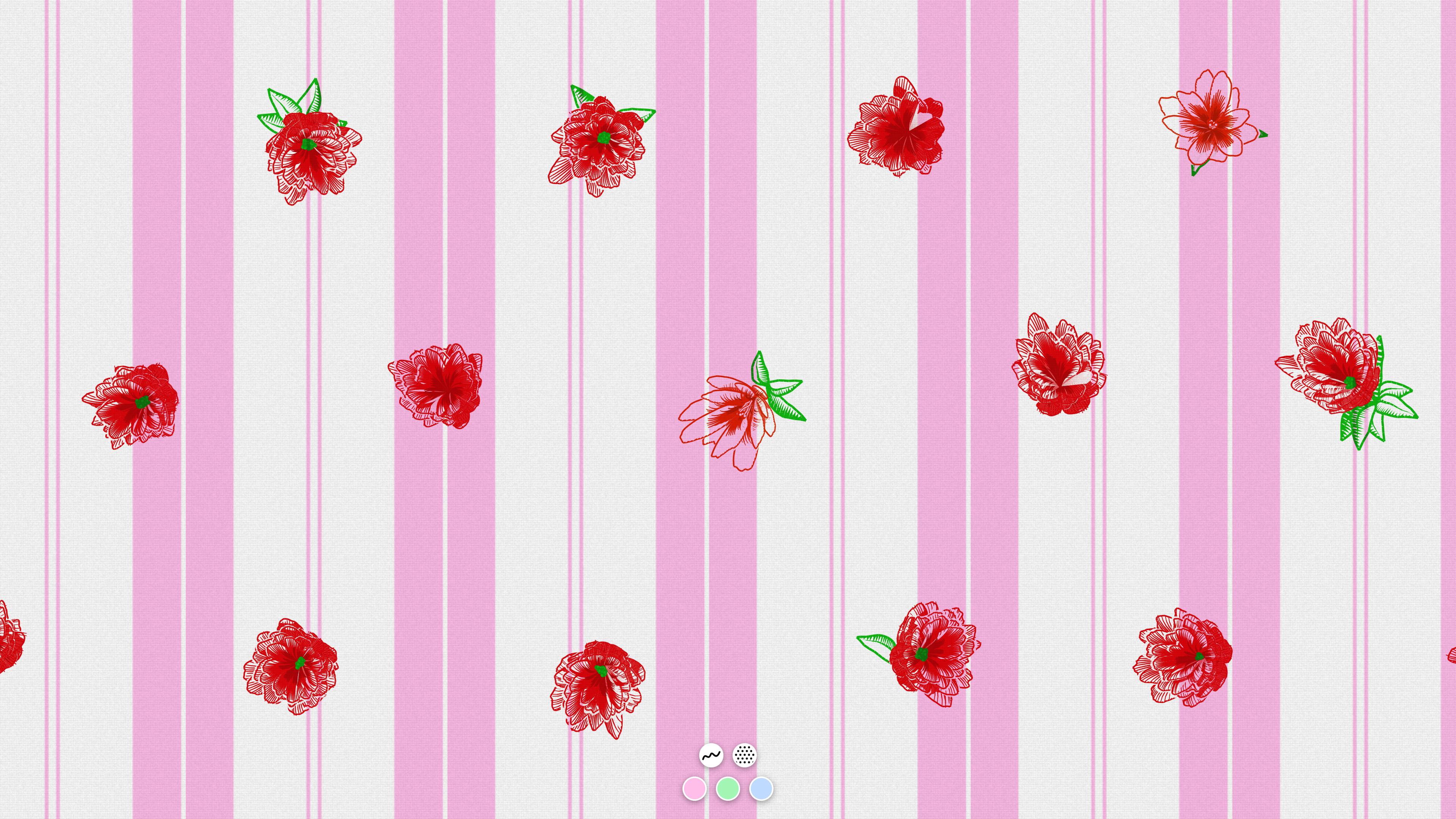

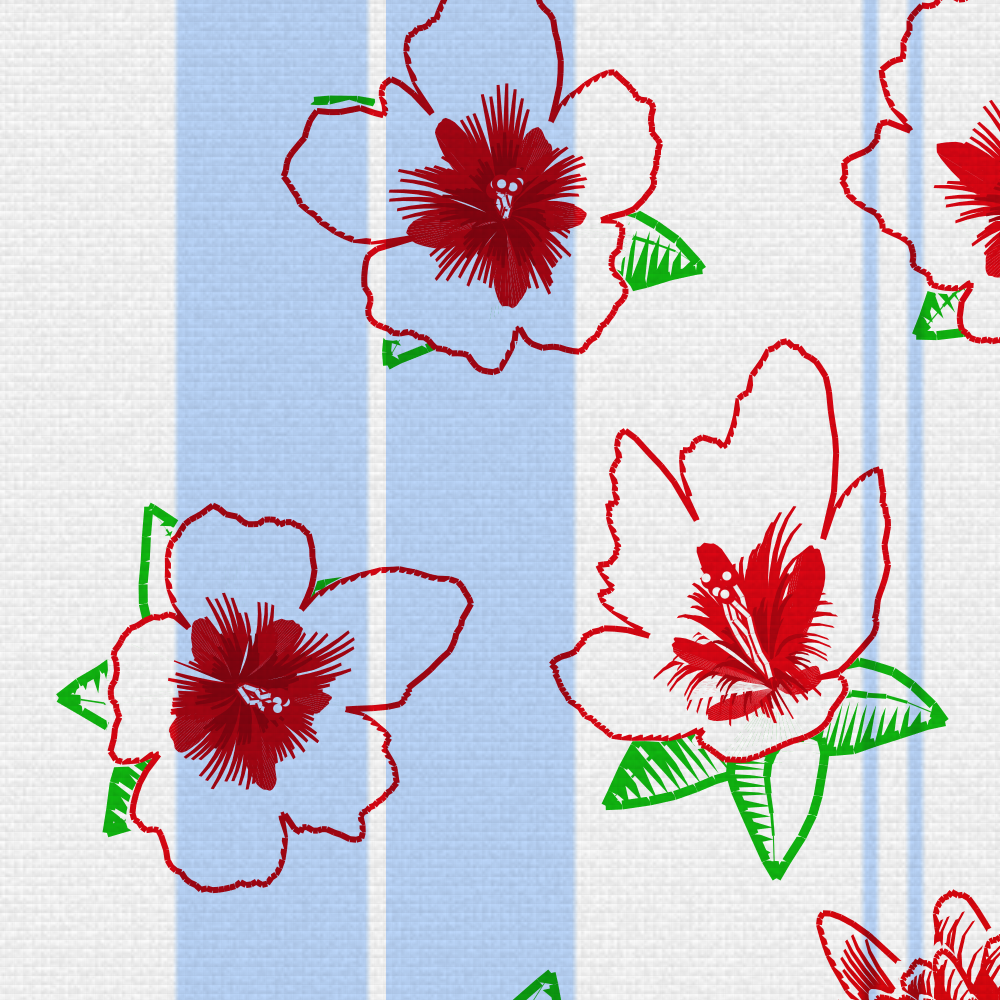

See more captures in the gallery below!

Here’s a link to the kumot webtoy!
